Product Description

High Speed Customized Flat Steel Bobbin Spool Reel For Wire Cable Machine



Product Details:

Place of Origin:China
Brand Name:Wirecan
Certification:ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:1pcs
Price:By negotiation
Packaging Details:Plastic film+wooden box
Delivery Time:Min.30working days
Payment Terms:L/C,T/T
Supply Ability:Up to different machine
Material:Q235 SteelApplication:Winding
Size:200-1250Servicer:OEM,ODM,Standard
Tolerance:0.02mm -0.05mmColor:Customized
Highlight:

Flat Steel Bobbin Spool Reel

,

Wire Cable Bobbin Spool Reel

,

Q235 Steel Bobbin Spool Reel

Product Description

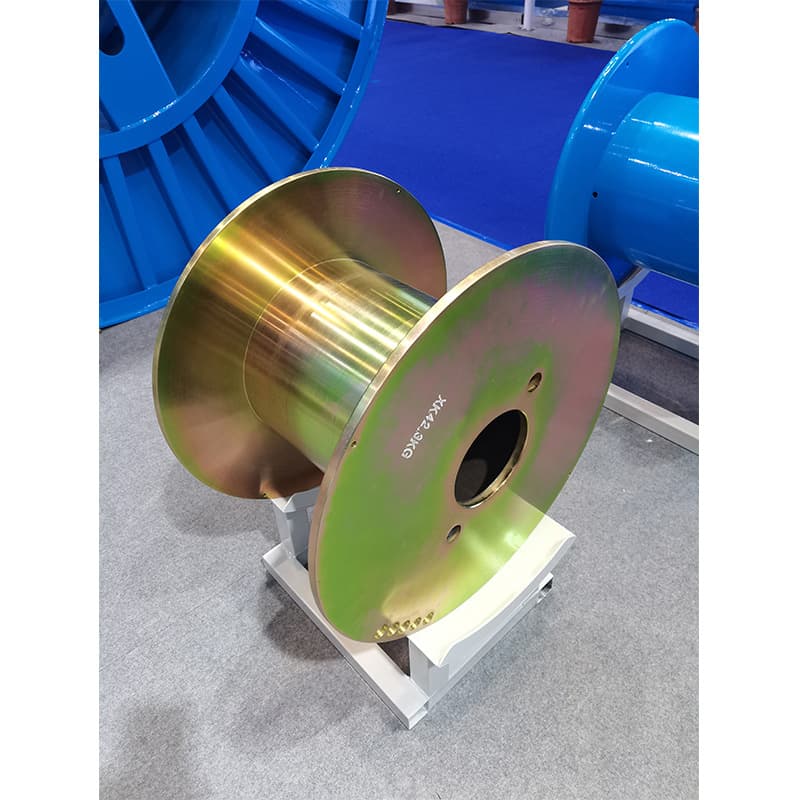

High speed Customized Flat Steel Bobbin Spool Reel for wire cable machine

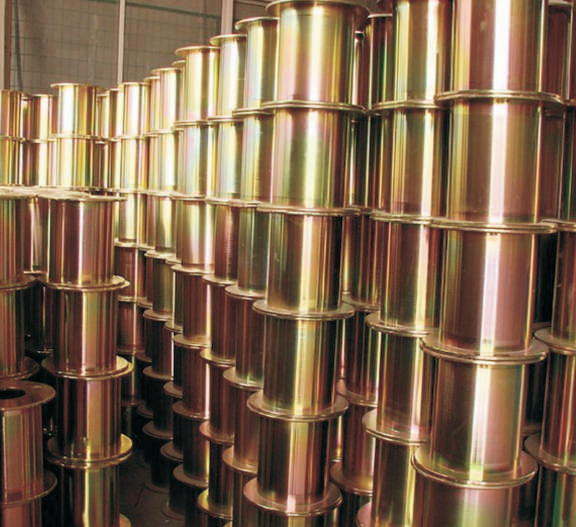

Steel Coil Punching Bobbin/Reel/Spool/Drum

1. Application :

It is suitable for wire drawing, stranding, bundle wire, armoring, shielding and other equipment of cables, steel wires and steel ropes and pipelines. This product is produced according to customer requirements or JB/T7600.3-94, DIN46395/DIN46397 ,GB4004-83 standards.

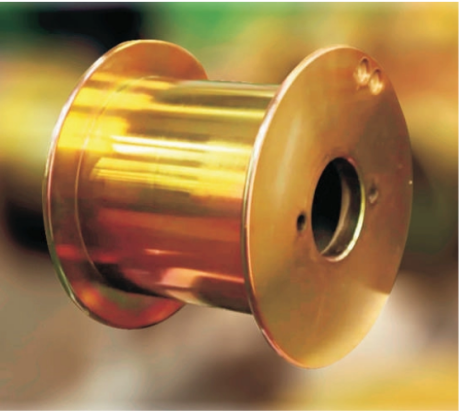

Steel bobbin with massive flanges , barrel, bore and hub. Dimension either according to customer's specifications or China national standards, JB/T8997.2 & JB/T8997.4-2013, JB/T7600.2-2008, DIN46395 /DIN46397 standard.

Dynamic balancing and meet speed 25m/s-50m/s.

For cable, ferrous and non-ferrous wire. For drawing, stranding and bunching machines.

Typed1d2d4d5L1L2eVolume
2002001123616150125402.69
2502501575616190160504.75
315315217125/127182902709011.05
355355217125/127182902709016.73
40040016570162702505026.09
  217125/127183002809024.83
50050021770203203205047.78
  500125/1272837531510044.1
630630355125/1272847540010086.2
800800399125/12740536500160188.4
Specificationsd1d2d4d5L1L2eV1dm³
2002001123616150125402.69
2502501575616190160504.75
300300217125/12718290270909.09
315315217125/127182902709011.05
355355217125/127182902709016.73
40040016570162702505026.09
217125/127183002809024.82
50050021770203203205047.78
250125/1272837531510044.1
630630355125/1272847540010086.2
800800399125/12740536500160188.4
Specificationsd1d2d4d5L1L2eV1dm³
2002001123616150125402.69
2502501575616190160504.75
300300217125/12718290270909.09
315315217125/127182902709011.05
355355217125/127182902709016.73
40040016570162702505026.09
217125/127183002809024.82
50050021770203203205047.78
250125/1272837531510044.1
630630355125/1272847540010086.2
800800399125/12740536500160188.4

2. Specification



IMG_256





Factory Exhibition

Factory Exhibition (3)

Packing&Shipping

shipping &packing

Packaging & Dispatch

fibre-optic cable
Cords
Cable
Wire Rope

Customer Feedback

fibre-optic cable
Cords
