Optical Fiber Spool Injection Mold
Keyword:
Product Description

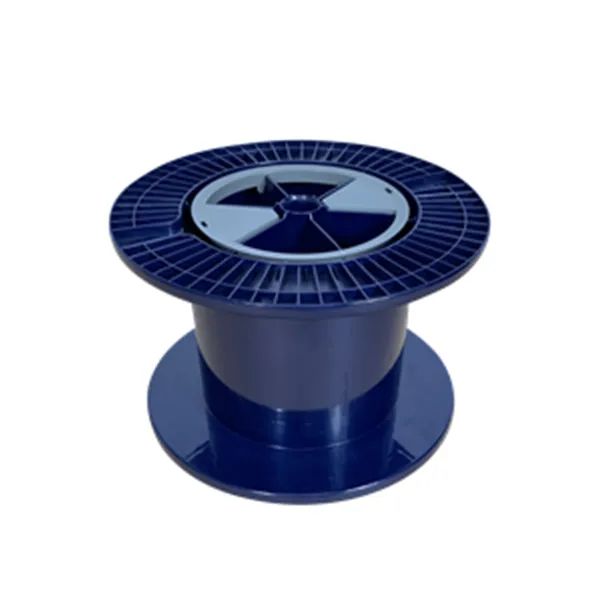

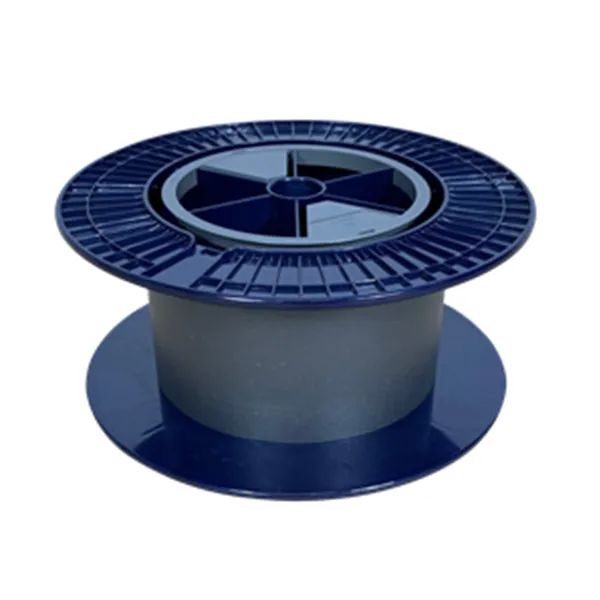

Custom plastic injection mold for Optical Fiber Spools
• Designed for packaging and delivery of fiber optics.
• Material: ABS, which ensures toughness.
• Structure: Integrated, which provides stability and high strength.
• The spool body is equipped with sponge to protect the fiber optics from damage.
With a wealth of experience in the industry, we excel in the professional production of various cable spools/wire spools. Our dedication to crafting spools that meet exacting standards in size, functionality, and customization exemplifies our commitment to professionalism in every aspect of our work.
key words: Fiber optics packaging, custom wire packaging, custom cable packaging, custom plastic spool, custom plastic wheel
| type | model | flange diameter D1 | barrel diameter D2 | center hole D3 | inner distance L1 | outer distance L2 | flange thickness T | material | usage |
| PL light | 6.5"x4.5" | 6.5" | 2" | 0.8" | 4.5" | 4.9" | 0.2" | PP/PE | cable |
| 6.5"x6.5" | 6.5" | 2" | 0.8" | 6.5" | 6.9" | 0.2" | PP/PE | cable | |
| 6.5"x8" | 6.5" | 2" | 0.8" | 8" | 8.4" | 0.2" | PP/PE | cable | |
| 12"x5" | 12" | 4" | 1.5" | 5" | 5.5" | 0.25" | PP/PE | cable | |
| 12"x11" | 12" | 4" | 1.5" | 11" | 12.2" | 0.6" | PP/PE | cable | |
| 14"x11" | 14" | 4" | 1.5" | 11" | 12.2" | 0.6" | PP/PE | cable | |
| PL heavy | 300x150 | 300 | 100 | 38 | 150 | 180 | 15 | PP | cable |
| 300z200 | 300 | 100 | 38 | 200 | 250 | 15 | PP | cable | |
| 300x130 | 300 | 130 | 38 | 130 | 160 | 15 | PP | cable | |
| 300x190 | 300 | 130 | 38 | 190 | 220 | 15 | PP | cable | |
| 300x260 | 300 | 150 | 70 | 260 | 290 | 15 | PS | cable | |
| 400 | 400 | 150 | 57 | 200 | 250 | 22.5 | PP | cable | |
| 400 | 400 | 150 | 57 | 250 | 300 | 22.5 | PP | cable | |
| 400 | 400 | 150 | 57 | 300 | 350 | 22.5 | PP | cable | |
| 400 | 400 | 150 | 57 | 350 | 400 | 22.5 | PP | cable | |
| 400 | 400 | 150 | 57 | 415 | 465 | 22.5 | PP | cable | |
| 500 | 500 | 140 | 38 | 290 | 320 | 15 | PP | cable | |
| 600 | 600 | 250 | 80 | 400 | 470 | 35 | PP | cable | |
| Heavy Duty Drum | 800 | 800 | 400 | 80 | 400 | 480 | 40 | PP | cable |
| 1000 | 1000 | 500 | 80 | 660 | 780 | 60 | PP | cable | |
| 1200 | 1200 | 630 | 80 | 646 | 800 | 77 | PP | cable | |
| NPS | NPS400 | 400 | 260 | 80 | 400 | 462 | 25 | ABS | auto wire |
| NPS250 | 400 | 260 | 80 | 250 | 312 | 25 | ABS | auto wire | |
| NPS150 | 400 | 260 | 80 | 150 | 212 | 25 | ABS | auto wire | |
| NPS100 | 400 | 260 | 80 | 100 | 162 | 25 | ABS | auto wire | |
| 3D filament | 750 g | 200 | 105 | 52 | 47 | 53 | 3.5 | ABS/PP/PC | 3D filament |
| 1000 g | 200 | 105 | 52 | 70 | 77 | 3.5 | ABS/PP/PC | 3D filament | |
| fiber | 25km | 235 | 150 | 25 | 95 | 105 | 5 | ABS | optical fiber |
| 50km | 265 | 170 | 25 | 180 | 196 | 8 | ABS | optical fiber | |
| DIN | 300 | 300 | 212 | 52 | 90 | 100 | 5 | ABS/PS/PC | welding wire |
| DIN | 100 | 100 | 63 | 16 | 80 | 100 | 10 | ABS | copper wire |
| 125 | 125 | 80 | 16 | 100 | 125 | 12.5 | ABS | copper wire | |
| 160 | 160 | 100 | 22 | 128 | 160 | 16 | ABS | copper wire | |
| 200 | 200 | 125 | 22 | 160 | 200 | 20 | ABS | copper wire | |
| 250 | 250 | 160 | 22 | 160 | 200 | 20 | ABS | copper wire | |
| PC | RT | 203 | 130 | 32.5 | 194 | 223 | 14.5 | ABS | fiber |
| RK | 203 | 70 | 32.5 | 194 | 221 | 13.5 | ABS | fiber | |
| RG | 171 | 79 | 32.5 | 192 | 221 | 14.5 | ABS | fiber | |
| NB | 140 | 70 | 16.5 | 194 | 213 | 9.5 | PA/ABS | fiber | |
| coil pack | 265 | 265 | 90 | 180 | 196 | 42 | 8 | ABS | coil |
| transfer | 630 | 630 | 315 | 56 | 315 | 365 | 25 | ABS | copper wire |
