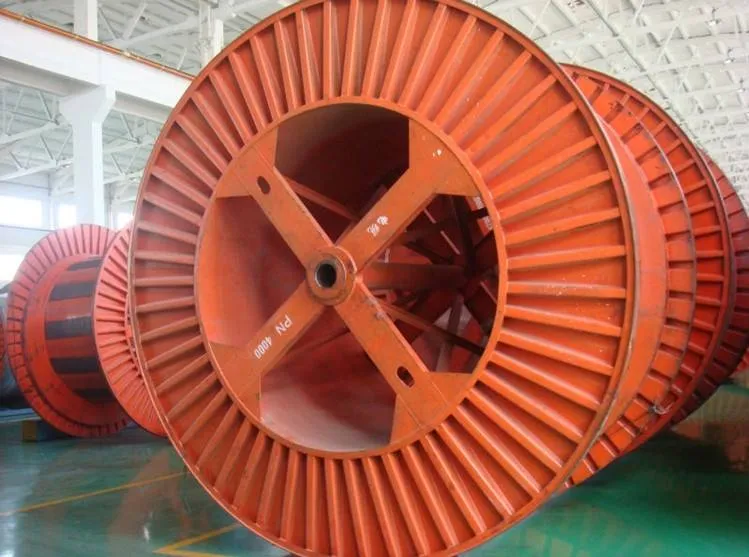

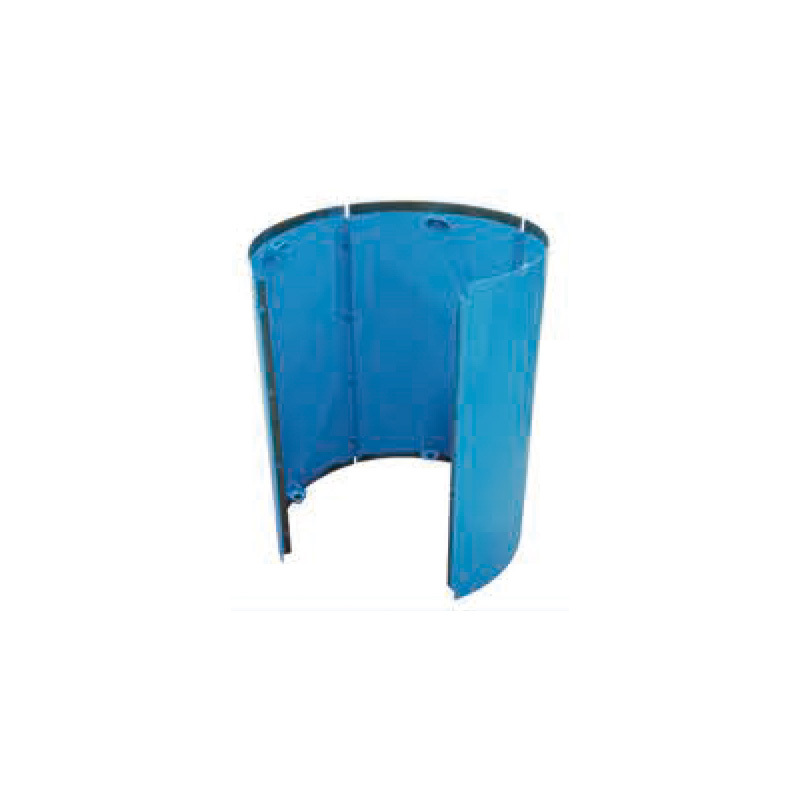

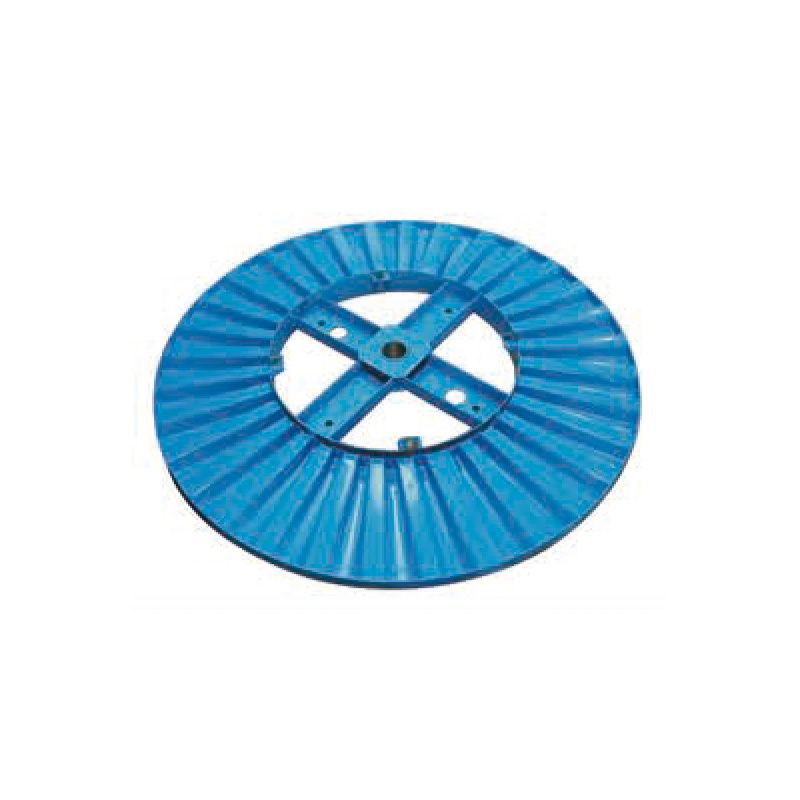

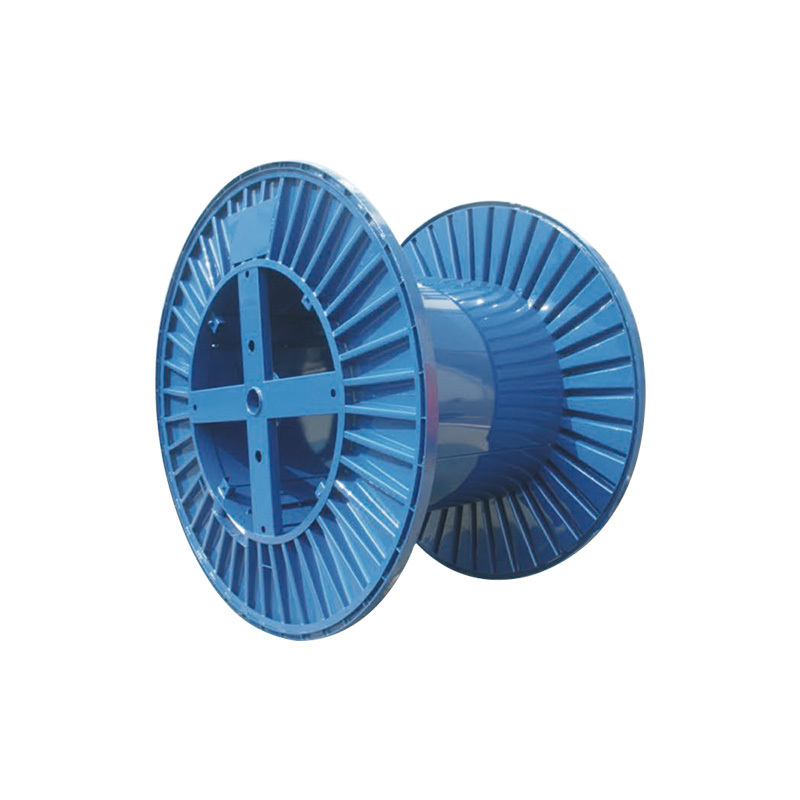

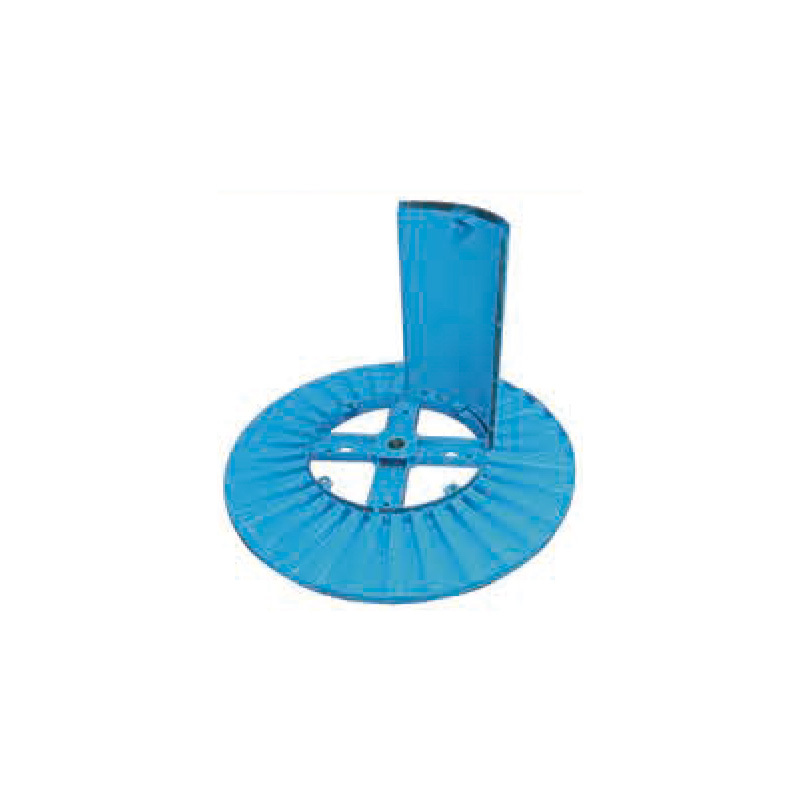

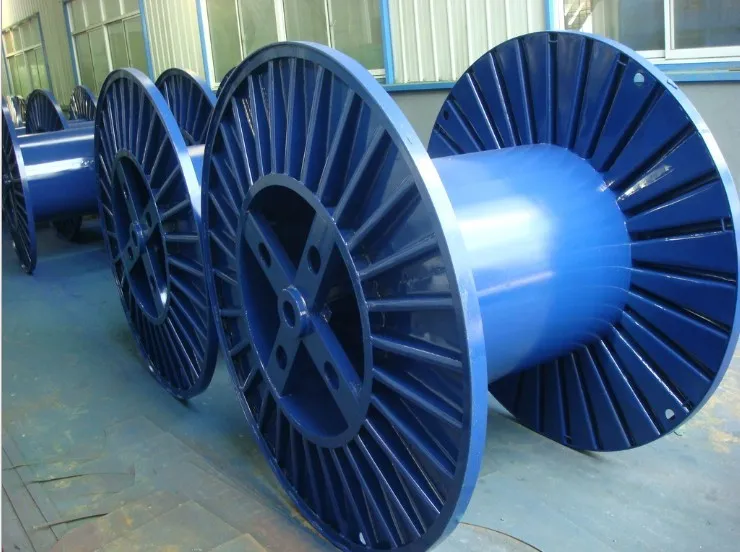

Knock-down Drum
Keyword:
Product Description
Product Description
Application: Cable and rope process (reinforced version) or transportation (lightweight version). Can be supplied as knock down condition to reduce transport cost.
Standard: Painted outside flanges as per customer's specification.
Surface finish: Fully painted, zinc galvanized.
Customized: Weight, logo and numbering (painted or welded plate).
Optionals: Statically or dynamically balancing, hardened changeable bushings, barrel and flanges with reinforcements for heavy duty process (drum twister), lifting hooks, slots for fixing the cable.
Standard flange (mm): 1000,1250,1600,1800,2000 and over. Other dimensions are available.
Technical Parameter
| Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
| 1 | 800 | 800 | 400 | 80 | 40 | 160 | 600 | 500 |
| 2 | 1000 | 1000 | 500 | 80 | 40 | 160 | 750 | 630 |
| 3 | 1120 | 1120 | 560 | 80 | 40 | 160 | 850 | 710 |
| 4 | 1250 | 1250 | 630 | 80 | 40 | 160 | 950 | 800 |
| 5 | 1400 | 1400 | 710 | 80 | 65 | 300 | 1060 | 900 |
| 6 | 1600 | 1600 | 800 | 80 | 65 | 300 | 1180 | 1000 |
| 7 | 1800 | 1800 | 1000 | 100 | 65 | 300 | 1320 | 1120 |
| 8 | 2000 | 2000 | 1120 | 1235 | 65 | 300 | 1500 | 1250 |
| 9 | 2240 | 2240 | 1250 | 125 | 65 | 300 | 1700 | 1400 |
| 10 | 2500 | 2500 | 1500 | 125 | 65 | 300 | 1900 | 1600 |
| 11 | 2800 | 2800 | 1800 | 140 | 65 | 300 | 2120 | 1800 |
| 12 | 3150 | 3150 | 2000 | 160 | 65 | 500 | 2300 | 2000 |
| 13 | 4000 | 4000 | 2800 | 200 | 80 | 500 | 2300 | 2000 |
More dimensions according to your drawing.
