In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is formed by punching and welding common carbon steelQ235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure.
Packaging services for rope, mesh, wire and cable companies worldwide.
Product Series
Contact Us
Telephone: +86-187-6548-6789
WhatsApp: +86-139-5388-5161
E-Mail: boss@sdtsgm.com
Address: Qiujiadian industral Park, Qiujiadian Town,Taishan District, Tai'anCity, Shandong Province
Steel Punching Spool Bobbin
Dimension either according to customer's specifications or China national standards, JB/T8997.3-2013, DIN46395 standard.
Keyword:
Product Description

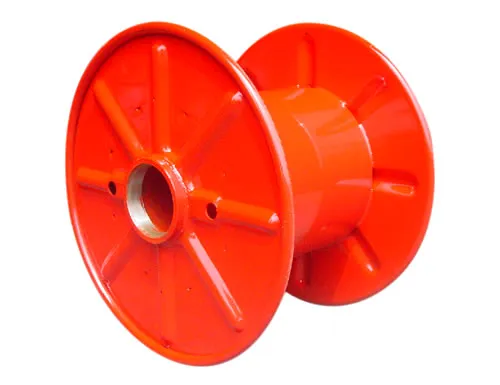

Cable Punching Steel Bobbin Spool Reel For Winding Machine
The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and light weight, which can be used for drawing-wire machine, fork strander and tubular strander.
Product Details:
| Place of Origin: | China |
| Brand Name: | Wirecan |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
| Material: | Steel | Usage: | Winding |
| Size: | 400-1000 | Color: | Blue,green,or As Customer Requirements |
| Package: | Pack With Pallet | OEM: | Accept |
| Highlight: |
Steel Wire Coil Punching Bobbin , OEM Wire Coil Punching Bobbin |
||
Product Description

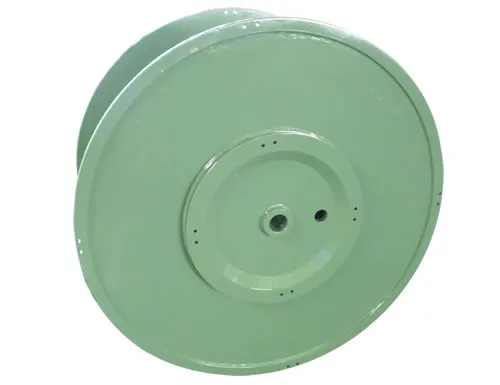

Steel Coil Punching Bobbin/Reel/Spool/Drum
1. Application :
This product is stamped and formed by steel plate, and is produced according to customer requirements or JB/T8997.4-1999 DIN46395 standards.It is suitable for turnover or delivery of cables, wire ropes, steel cords, copper wires, aluminum wires, etc.
2. Specification
| specification | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | Volume |
| 315 | 315 | 180 |
158 |
28
125/127 |
16 | 100 | 236 | 200 | 10.5 |
| 200 | 9.3 | ||||||||
| 240 | 7.7 | ||||||||
| 355 | 355 | 200 | 265 | 224 | 15.1 | ||||
| 250 | 11.2 | ||||||||
| 400 | 400 | 224 | 300 | 250 | 21.6 | ||||
| 280 | 16.0 | ||||||||
| 450 | 450 | 250 |
28 |
335 | 280 | 30.8 | |||
| 315 | 22.7 | ||||||||
| 500 | 500 | 280 | 375 | 315 | 42.5 | ||||
| 335 | 30.7 | ||||||||
| 560 | 560 | 315 | 425 | 355 | 59.8 | ||||
| 400 | 42.8 | ||||||||
| 630 | 630 | 355 | 475 | 400 | 86.2 | ||||
| 450 | 61.1 | ||||||||
| 710 | 710 | 400 | 530 | 450 | 121.6 | ||||
| 500 | 89.8 | ||||||||
| 800 | 800 | 450 | 40 | 170 | 600 | 500 | 172 | ||
| 560 | 128 | ||||||||

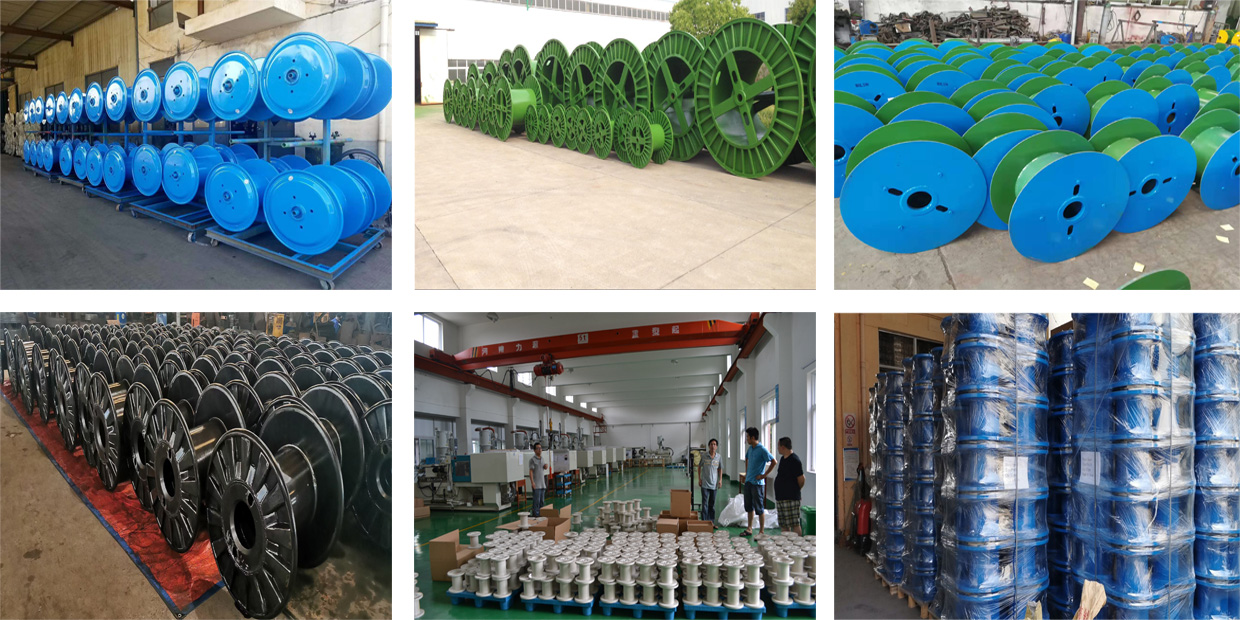

Factory Exhibition
Packing&Shipping

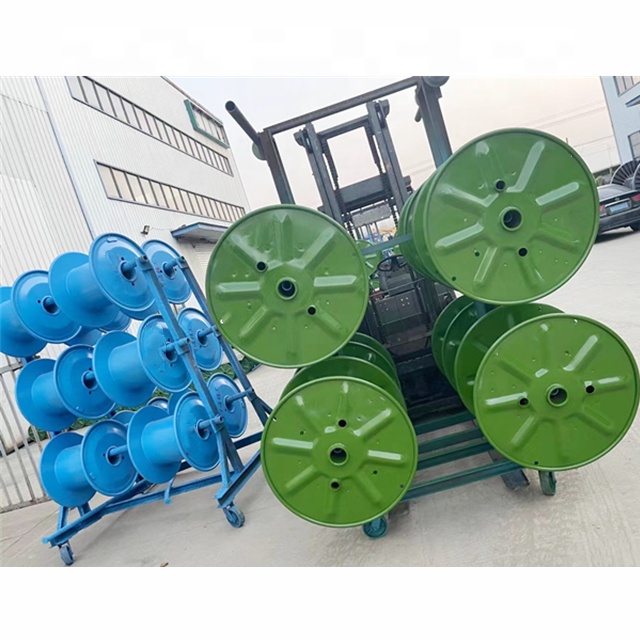

Packaging & Dispatch
Customer Feedback
Get a Free Quote
If you need more information about our products, please feel free to contact us, we will provide you with professional service personnel, we will reply promptly after receiving the information.
Related Products
Industry Applications
Fibre-optic Cable
Cords
Cable
Wire Rope
Cord
Aluminium Wire
Corporate Profile
Shandong Taisong Industry & Trade Co., Ltd. Located at the foot of the beautiful Mount Tai, it provides packaging services for global rope, net, wire and cable enterprises. High-tech enterprises mainly engaged in wooden wire trays, European standard wooden trays, American standard wooden trays, export fumigation-free trays, all-iron wire trays, plastic wire trays, and paper wire trays, and can provide commodity inspection performance sheets. Dangerous packaging export provides dangerous goods packaging certificate. The company is a professional packaging products manufacturer with a wide variety of products.
Certificates
FAQ
Q
Does it support customisation?
A
Yes, please contact us in time.
Q
Where to ship?
A
Qingdao port, Shanghai port.
Q
Payment method?
A
30% Deposit, L/C
Q
How long is the delivery period?
A
7-10 days.
Q
Do you provide samples? Is it free or extra?
A
After the price is confirmed, you can request a sample to check our quality counter display. If you need samples, we will charge sample shipping fee. However, the sample shipping fee is refundable after order confirmation.
Q
How can I get your quotation as soon as possible?
A
Email and message, mobile phone and WhatsApp will be online within 24 hours. Please send us your requirements and order information (product, quantity, destination port) and we will work out the best price soon.
