Flat High Speed Bobbin
Flat High Speed Bobbin

Flat High Speed Bobbin

Steel bobbin with massive flanges , barrel, bore and hub. Dimension either according to customer's specifications or China national standards, JB/T8997.2 & JB/T8997.4-2013, JB/T7600.2-2008, DIN46395 /DIN46397 standard.

Category:

Flat High Speed Spool

E-Mail:

boss@sdtsgm.com

Inquiry
WhatsApp
E-mail

Keyword:

Flat High Speed Spool

NOA
IAF
IAS

Product Description

High Speed Customized Flat Steel Bobbin Spool Reel For Wire Cable Machine



Product Details:

Place of Origin: China
Brand Name: Wirecan
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: By negotiation
Packaging Details: Plastic film+wooden box
Delivery Time: Min.30working days
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Material: Q235 Steel Application: Winding
Size: 200-1250 Servicer: OEM,ODM,Standard
Tolerance: 0.02mm -0.05mm Color: Customized
Highlight:

Flat Steel Bobbin Spool Reel

,

Wire Cable Bobbin Spool Reel

,

Q235 Steel Bobbin Spool Reel

Product Description

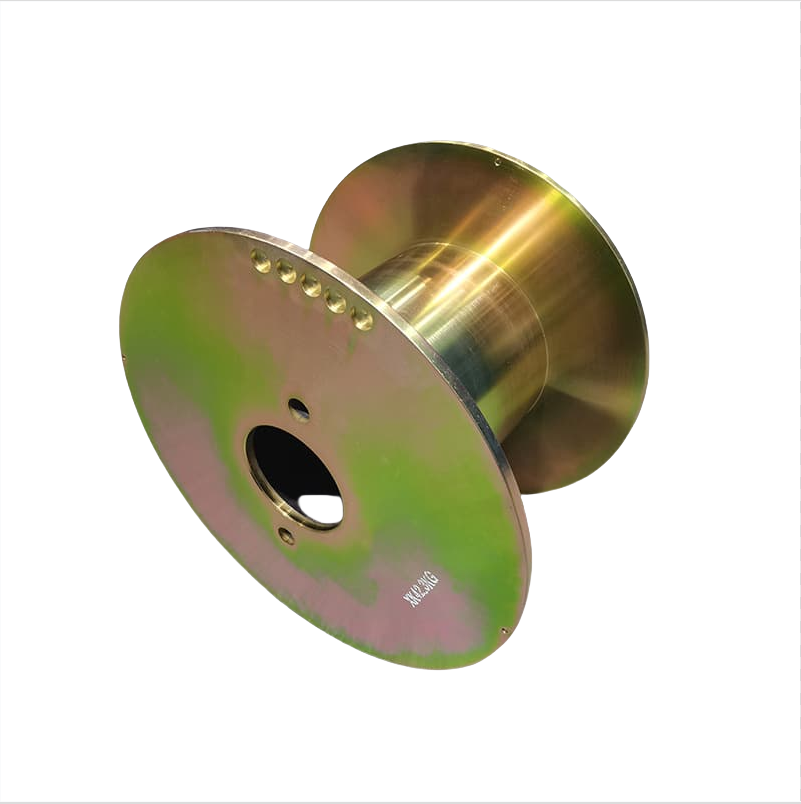

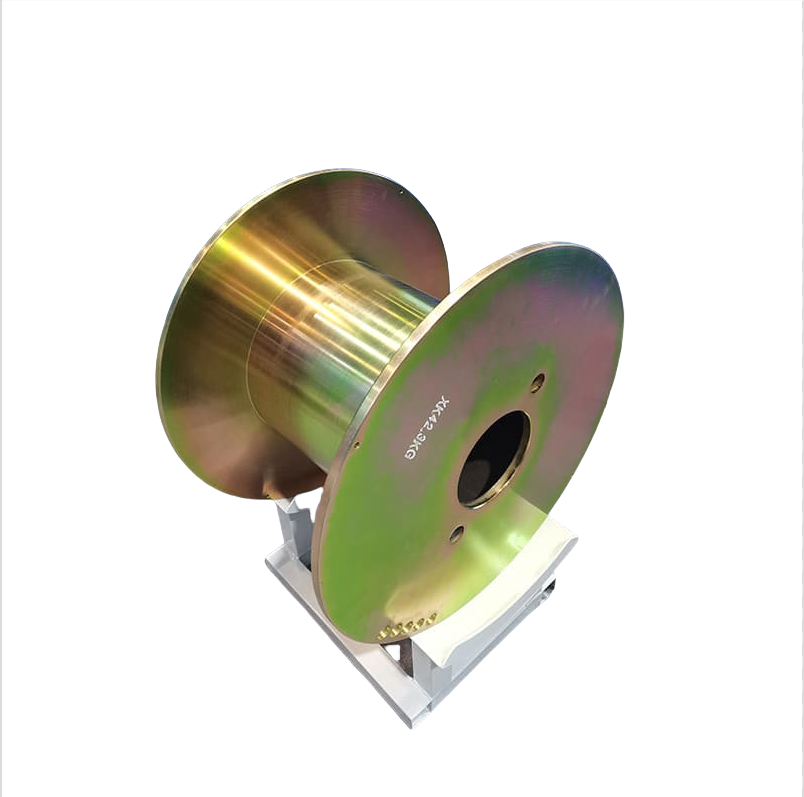

High speed Customized Flat Steel Bobbin Spool Reel for wire cable machine

Steel Coil Punching Bobbin/Reel/Spool/Drum

1. Application :

It is suitable for wire drawing, stranding, bundle wire, armoring, shielding and other equipment of cables, steel wires and steel ropes and pipelines. This product is produced according to customer requirements or JB/T7600.3-94, DIN46395/DIN46397 ,GB4004-83 standards.

Steel bobbin with massive flanges , barrel, bore and hub. Dimension either according to customer's specifications or China national standards, JB/T8997.2 & JB/T8997.4-2013, JB/T7600.2-2008, DIN46395 /DIN46397 standard.

Dynamic balancing and meet speed 25m/s-50m/s.

For cable, ferrous and non-ferrous wire. For drawing, stranding and bunching machines.

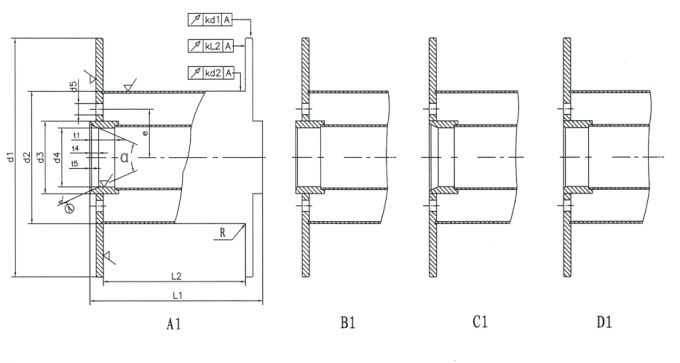

Type d1 d2 d4 d5 L1 L2 e Volume
200 200 112 36 16 150 125 40 2.69
250 250 157 56 16 190 160 50 4.75
315 315 217 125/127 18 290 270 90 11.05
355 355 217 125/127 18 290 270 90 16.73
400 400 165 70 16 270 250 50 26.09
    217 125/127 18 300 280 90 24.83
500 500 217 70 20 320 320 50 47.78
    500 125/127 28 375 315 100 44.1
630 630 355 125/127 28 475 400 100 86.2
800 800 399 125/127 40 536 500 160 188.4
Specifications d1 d2 d4 d5 L1 L2 e V1dm³
200 200 112 36 16 150 125 40 2.69
250 250 157 56 16 190 160 50 4.75
300 300 217 125/127 18 290 270 90 9.09
315 315 217 125/127 18 290 270 90 11.05
355 355 217 125/127 18 290 270 90 16.73
400 400 165 70 16 270 250 50 26.09
217 125/127 18 300 280 90 24.82
500 500 217 70 20 320 320 50 47.78
250 125/127 28 375 315 100 44.1
630 630 355 125/127 28 475 400 100 86.2
800 800 399 125/127 40 536 500 160 188.4
Specifications d1 d2 d4 d5 L1 L2 e V1dm³
200 200 112 36 16 150 125 40 2.69
250 250 157 56 16 190 160 50 4.75
300 300 217 125/127 18 290 270 90 9.09
315 315 217 125/127 18 290 270 90 11.05
355 355 217 125/127 18 290 270 90 16.73
400 400 165 70 16 270 250 50 26.09
217 125/127 18 300 280 90 24.82
500 500 217 70 20 320 320 50 47.78
250 125/127 28 375 315 100 44.1
630 630 355 125/127 28 475 400 100 86.2
800 800 399 125/127 40 536 500 160 188.4

2. Specification



IMG_256





Factory Exhibition

Factory Exhibition (3)

Packing&Shipping

shipping &packing

Packaging & Dispatch

fibre-optic cable
Cords
Cable
Wire Rope

Customer Feedback

fibre-optic cable
Cords

Get a Free Quote

If you need more information about our products, please feel free to contact us, we will provide you with professional service personnel, we will reply promptly after receiving the information.

  • What products do you need?
  • How much do you need?
  • What other information do you need to know?
Submit
