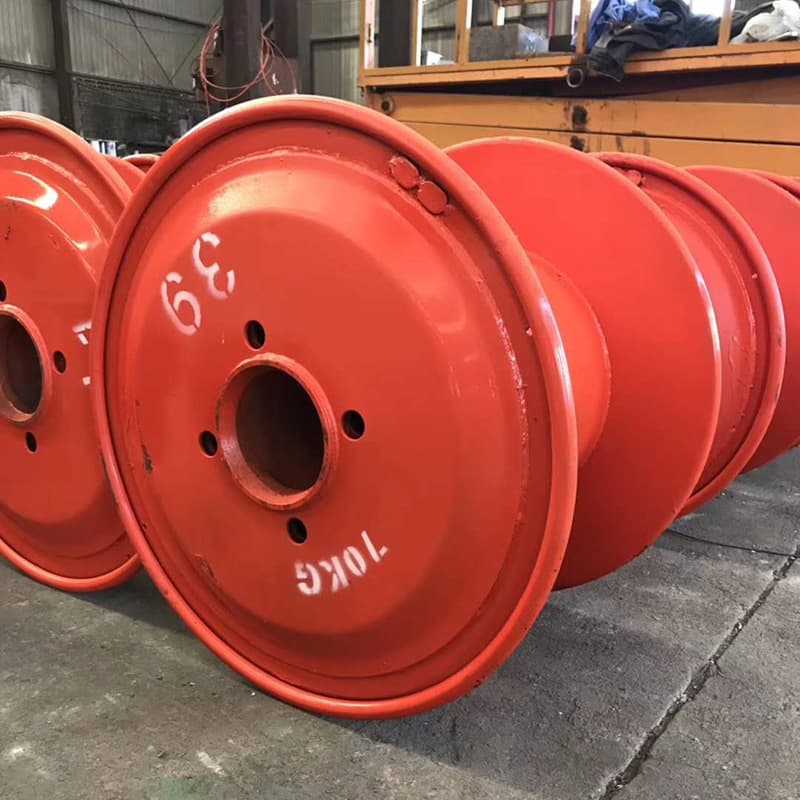

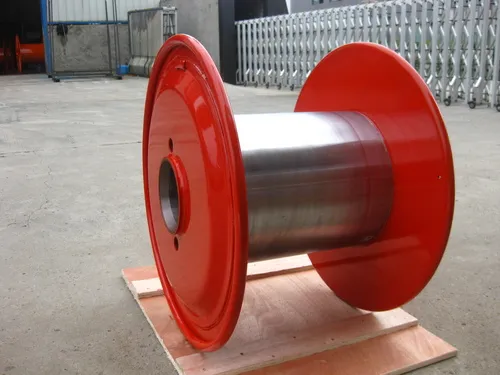

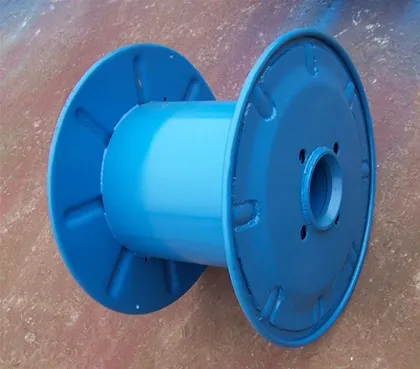

Double Layer High Speed Bobbin
Dimension either according to customer's specifications or China national standards JB/T8997.4-2013, DIN46395 /DIN46397 standard.
Keyword:
Product Description
Dimension either according to customer's specifications or China national standards JB/T8997.4-2013, DIN46395 /DIN46397 standard.
Dynamic balancing and meet speed 25m/s-50m/s.
For cable, ferrous and non-ferrous wire. For drawing, stranding and bunching machines.
|
Specifications |
d₁ |
d₂ |
d₃ |
d₄ |
I |
I₂ |
d₅ |
e |
t₁ |
t₄ |
t₅ |
Vidm³ |
|
315 |
315 |
180 |
158 |
125/127 |
236 |
200 |
16 |
100 |
35 |
20 |
2 |
10.5 |
|
200 |
9.3 |
|||||||||||
|
224 |
7.7 |
|||||||||||
|
355 |
355 |
200 |
|
125/127 |
265 |
224 |
12.2 |
|||||
|
224 |
15.1 |
|||||||||||
|
250 |
13.3 |
|||||||||||
|
11.2 |
||||||||||||
|
400 |
400 |
224 |
158 |
125/127 |
300 |
250 |
28 |
100 |
35 |
20 |
2 |
17.3 |
|
250 |
21.6 |
|||||||||||
|
280 |
19.1 |
|||||||||||
|
450 |
450 |
250 |
158 |
125/127 |
335 |
280 |
16.0 |
|||||
|
280 |
24.6 |
|||||||||||
|
315 |
30.8 |
|||||||||||
|
500 |
500 |
280 |
158 |
125/127 |
375 |
315 |
27.3 |
|||||
|
22.7 |
||||||||||||
|
315 |
33.7 |
|||||||||||
|
355 |
42.5 |
|||||||||||
|
560 |
560 |
315 |
158 |
125/127 |
425 |
355 |
37.5 |
|||||
|
355 |
30.7 |
|||||||||||
|
47.1 |
||||||||||||
|
400 |
59.8 |
|||||||||||
|
52.3 |
||||||||||||
|
630 |
630 |
315 |
158 |
125/127 |
475 |
400 |
28 |
100 |
45 |
20 |
2 |
42.8 |
|
355 |
67.0 |
|||||||||||
|
86.2 |
||||||||||||
|
400 |
74.4 |
|||||||||||
|
450 |
61.6 |
|||||||||||
|
710 |
710 |
400 |
158 |
125/127 |
530 |
450 |
40 |
170 |
60 |
20 |
2 |
95.9 |
|
450 |
121.6 |
|||||||||||
|
500 |
106.6 |
|||||||||||
|
800 |
800 |
450 |
158 |
125/127 |
600 |
500 |
89.8 |
|||||
|
137 |
||||||||||||
|
500 |
172 |
|||||||||||
|
560 |
153 |
|||||||||||
|
1000 |
1000 |
560 |
158 |
125/127 |
750 |
630 |
40 |
170 |
65 |
20 |
2 |
298 |
|
|
128 |
|||||||||||
|
630 |
340 |
|||||||||||
|
710 |
245 |
|||||||||||
|
1250 |
1250 |
710 |
297 |
250 |
950 |
800 |
50 |
250 |
85 |
20 |
2 |
665 |
|
800 |
580 |
|||||||||||
|
900 |
473 |
