560mm double layer wire spool

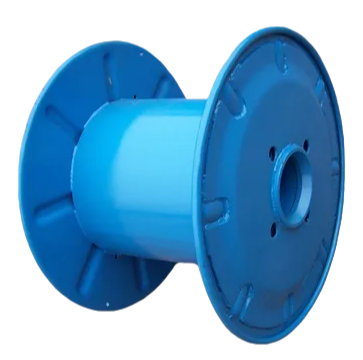

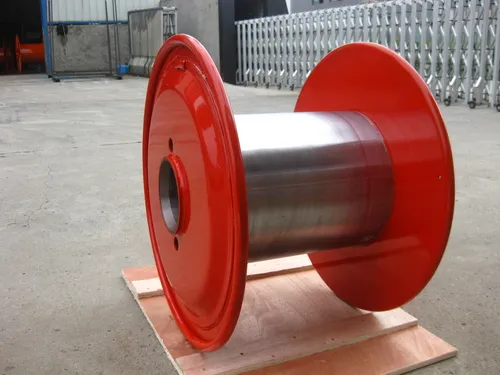

560mm Double Layer High Speed Cable Metal Spool Product DescriptionInaccordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards,the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing. The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high speed drawing-wire machine and wire stranding machine. Application: Drawing, buncher and stranding, steel, copper or aluminum wire.Standard: Machined barrel, protection by oil, dynamically balancing for 30 m/sec and over.Surface finish: Painted as per customer's specification.Customized: Weight, logo and numbering (engraved or painted).Optionals: Fully machining (barrel, inside and outside flanges), reinforced barrel.Standard flange (mm): 400, 560, 630, 760, 800, 1000. Other dimensions are available. Product Parameters PND series steel spoolSerial NumberSpecification ModelFlange DiameterDrum diameterAxle HoleDiameterCarrying Hole DiamaterExternal WidthInternal Width1PND 315315180/200/224125/127 162362002PND 335335200/224/2502652243PND 400400224/250/280 283002504PND 500500280/315/3553753155PND 560560315/355/4004253556PND 630630355/400/4504754007PND 710710400/450/500 250 405304508PND 800800450/500/5606005009PND 10001000560/630/710 5075063010PND 12501250710/800/900950800More dimensions according to your drawing. ONEREEL is specialized in the design and manufacture Steel Spools, Plastic Spools, Cable roller, Yarn Bobbin,  aluminum spool , Cable Reel Stand,  Sheave Pulley, Cable Conveyor, Hydraulic Puller Tensioner, Gin Poles, Cable Pulling Winch, Safety Tools, Wire Grip, Plastic Parts, and Pump in the industry since 1991. All of our customer spool and wire carrier are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.ONEREEL is specialized in the manufacture of reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels. With strong technological capabilities and full series of production equipment. All of our products go through the dynamic and static balance tests. We have passed the quality system certification ISO9001:2000 to ensure the product quality. Following the standards of GB4004-83, JB/T8997, DIN46395 and DIN46397 in productions.   Hot ProductCustomizable Sizes: Available in various sizes to accommodate different cable lengths and diameters.High Load Capacity: Engineered to handle significant weight, making it suitable for both lightweight and heavy-duty cables.Large Diameter Options: Ensures that even long lengths of cable can be wound and stored efficiently.Our Customer
