In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is formed by punching and welding common carbon steelQ235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure.
Packaging services for rope, mesh, wire and cable companies worldwide.
Product Series
Contact Us
Telephone: +86-187-6548-6789
WhatsApp: +86-139-5388-5161
E-Mail: boss@sdtsgm.com
Address: Qiujiadian industral Park, Qiujiadian Town,Taishan District, Tai'anCity, Shandong Province
Punching Spool Bobbin
Keyword:
Product Description

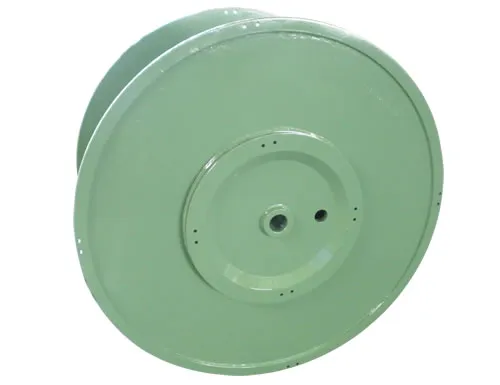

Cable Punching Steel Bobbin Spool Reel For Winding Machine
The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and light weight, which can be used for drawing-wire machine, fork strander and tubular strander.
Product Details:
| Place of Origin: | China |
| Brand Name: | Wirecan |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
| Material: | Steel | Usage: | Winding |
| Size: | 400-1000 | Color: | Blue,green,or As Customer Requirements |
| Package: | Pack With Pallet | OEM: | Accept |
| Highlight: | Steel Wire Coil Punching Bobbin , OEM Wire Coil Punching Bobbin | ||
Product Description

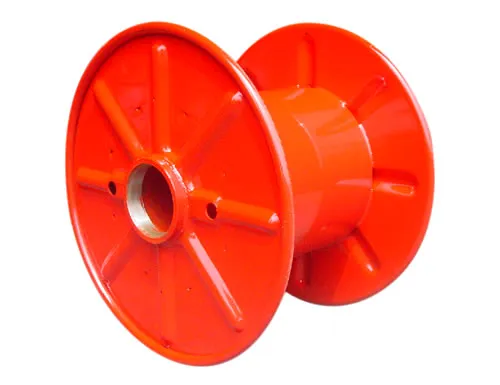

Steel Coil Punching Bobbin/Reel/Spool/Drum
1. Application :
This product is stamped and formed by steel plate, and is produced according to customer requirements or JB/T8997.4-1999 DIN46395 standards.It is suitable for turnover or delivery of cables, wire ropes, steel cords, copper wires, aluminum wires, etc.
2. Specification
| specification | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | Volume |
| 315 | 315 | 180 |
158 | 28
125/127 | 16 | 100 | 236 | 200 | 10.5 |
| 200 | 9.3 | ||||||||
| 240 | 7.7 | ||||||||
| 355 | 355 | 200 | 265 | 224 | 15.1 | ||||
| 250 | 11.2 | ||||||||
| 400 | 400 | 224 | 300 | 250 | 21.6 | ||||
| 280 | 16.0 | ||||||||
| 450 | 450 | 250 |
28 | 335 | 280 | 30.8 | |||
| 315 | 22.7 | ||||||||
| 500 | 500 | 280 | 375 | 315 | 42.5 | ||||
| 335 | 30.7 | ||||||||
| 560 | 560 | 315 | 425 | 355 | 59.8 | ||||
| 400 | 42.8 | ||||||||
| 630 | 630 | 355 | 475 | 400 | 86.2 | ||||
| 450 | 61.1 | ||||||||
| 710 | 710 | 400 | 530 | 450 | 121.6 | ||||
| 500 | 89.8 | ||||||||
| 800 | 800 | 450 | 40 | 170 | 600 | 500 | 172 | ||
| 560 | 128 | ||||||||
