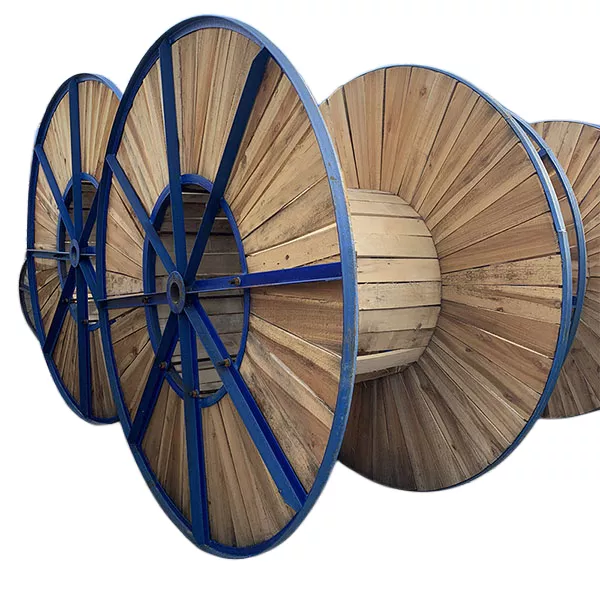

Steel wooden cable drum
Empty large wooden cable spool drum cable reel wire and cable wooden bobbin for winding1. Hybrid design: Wood & Metal Cable Drum combines the strength of metal frame with the elegance of wooden flange, providing a durable and aesthetic solution for cable storage and transportation.2. Superior load-bearing capacity: The wood and metal construction of the drum offers a higher load-bearing capacity compared to traditional wooden drums, ensuring secure and stable cable handling.3. Versatile usage: Suitable for various applications, including cable, wire, steel ropes, curtain cords, and copper wires, making it an ideal choice for industries such as telecommunications, construction, and entertainment.4. Cost-effective alternative: Wood Reel Cable Drum offers a more affordable option compared to solid wooden drums, allowing you to save on costs without compromising on quality and performance.5. Reliable after-sales support: We are committed to providing excellent customer service, offering assistance with any inquiries, concerns, or issues you may encounter with our Wood Reel Cable Drum. 1. Application:For cable winding and packing 2. Feature:1. perfect for electric cable wire. 2. for wire shipping ,not recycle use 3. black pp flange + pvc tube 4. we can advise suitable spool size for u according to your cable OD or meter 5. assembled with screws structure 6. special size custom-made. 3. SpecificationDescriptionSizeFlange DiameterBarrel Diameter BTraverse / Inner widthLoading capacityAmmCkgmm mm wooden bobbin/Steel wooden bobbin/Plywood bobbin600*300*358600300358400700*350*358700350358400800*350*358800350358600900*450*4589004504588001000*500*558100050055810004. Correct transportation Steel and Wooden Cable DrumsFlange DiameterBarrel DiameterTraverse / Inner widthFlange ThicknessLoading capacityABCDkgmmmmmmmm 6003003583640070035035836400800350358366009004504583680010005005584610001100500558461000120070068046120013007006804615001400700680562000150080068056200016008008105625001760900810663000186090081066350019601200980663500206012001030763500216012001080764000226013001130764000236013001180764000246013001230764000256013001280764000260014001400765000280014001500765000 5. Packing and delivery(1) Wooden box packing(2) PE film packing(3) Wooden frame packaging
Keyword:
Product Description

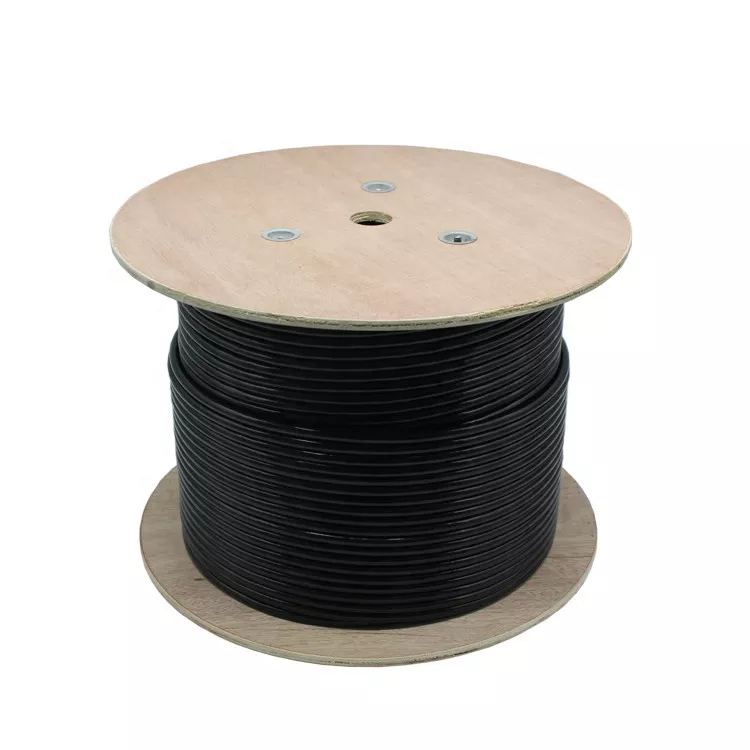

Empty large wooden cable spool drum cable reel wire and cable wooden bobbin for winding
1. Hybrid design: Wood & Metal Cable Drum combines the strength of metal frame with the elegance of wooden flange, providing a durable and aesthetic solution for cable storage and transportation.
2. Superior load-bearing capacity: The wood and metal construction of the drum offers a higher load-bearing capacity compared to traditional wooden drums, ensuring secure and stable cable handling.
3. Versatile usage: Suitable for various applications, including cable, wire, steel ropes, curtain cords, and copper wires, making it an ideal choice for industries such as telecommunications, construction, and entertainment.
4. Cost-effective alternative: Wood Reel Cable Drum offers a more affordable option compared to solid wooden drums, allowing you to save on costs without compromising on quality and performance.
5. Reliable after-sales support: We are committed to providing excellent customer service, offering assistance with any inquiries, concerns, or issues you may encounter with our Wood Reel Cable Drum.
1. Application:
For cable winding and packing
2. Feature:
1. perfect for electric cable wire.
2. for wire shipping ,not recycle use
3. black pp flange + pvc tube
4. we can advise suitable spool size for u according to your cable OD or meter
5. assembled with screws structure
6. special size custom-made.
3. Specification
| Description | Size | Flange Diameter | Barrel Diameter B | Traverse / Inner width | Loading capacity |
| A | mm | C | kg | ||
| mm | mm | ||||
| wooden bobbin/Steel wooden bobbin/Plywood bobbin | 600*300*358 | 600 | 300 | 358 | 400 |
| 700*350*358 | 700 | 350 | 358 | 400 | |
| 800*350*358 | 800 | 350 | 358 | 600 | |
| 900*450*458 | 900 | 450 | 458 | 800 | |
| 1000*500*558 | 1000 | 500 | 558 | 1000 |

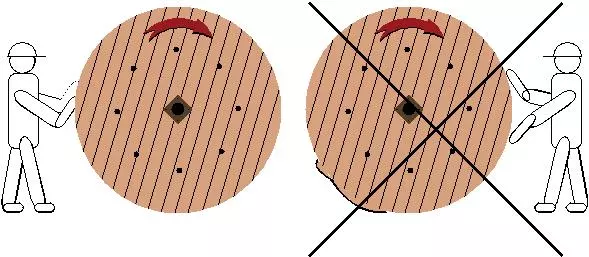

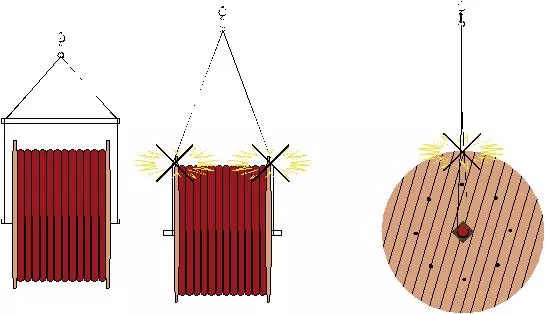

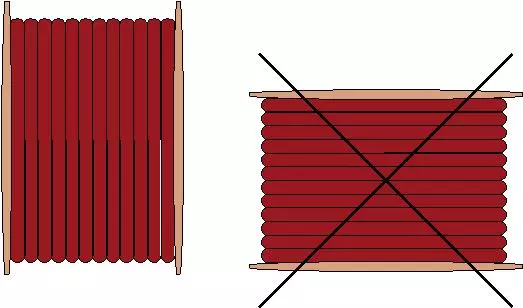

4. Correct transportation
Steel and Wooden Cable Drums | Flange Diameter | Barrel Diameter | Traverse / Inner width | Flange Thickness | Loading capacity |
| A | B | C | D | kg | |
| mm | mm | mm | mm | ||
| 600 | 300 | 358 | 36 | 400 | |
| 700 | 350 | 358 | 36 | 400 | |
| 800 | 350 | 358 | 36 | 600 | |
| 900 | 450 | 458 | 36 | 800 | |
| 1000 | 500 | 558 | 46 | 1000 | |
| 1100 | 500 | 558 | 46 | 1000 | |
| 1200 | 700 | 680 | 46 | 1200 | |
| 1300 | 700 | 680 | 46 | 1500 | |
| 1400 | 700 | 680 | 56 | 2000 | |
| 1500 | 800 | 680 | 56 | 2000 | |
| 1600 | 800 | 810 | 56 | 2500 | |
| 1760 | 900 | 810 | 66 | 3000 | |
| 1860 | 900 | 810 | 66 | 3500 | |
| 1960 | 1200 | 980 | 66 | 3500 | |
| 2060 | 1200 | 1030 | 76 | 3500 | |
| 2160 | 1200 | 1080 | 76 | 4000 | |
| 2260 | 1300 | 1130 | 76 | 4000 | |
| 2360 | 1300 | 1180 | 76 | 4000 | |
| 2460 | 1300 | 1230 | 76 | 4000 | |
| 2560 | 1300 | 1280 | 76 | 4000 | |
| 2600 | 1400 | 1400 | 76 | 5000 | |
| 2800 | 1400 | 1500 | 76 | 5000 |

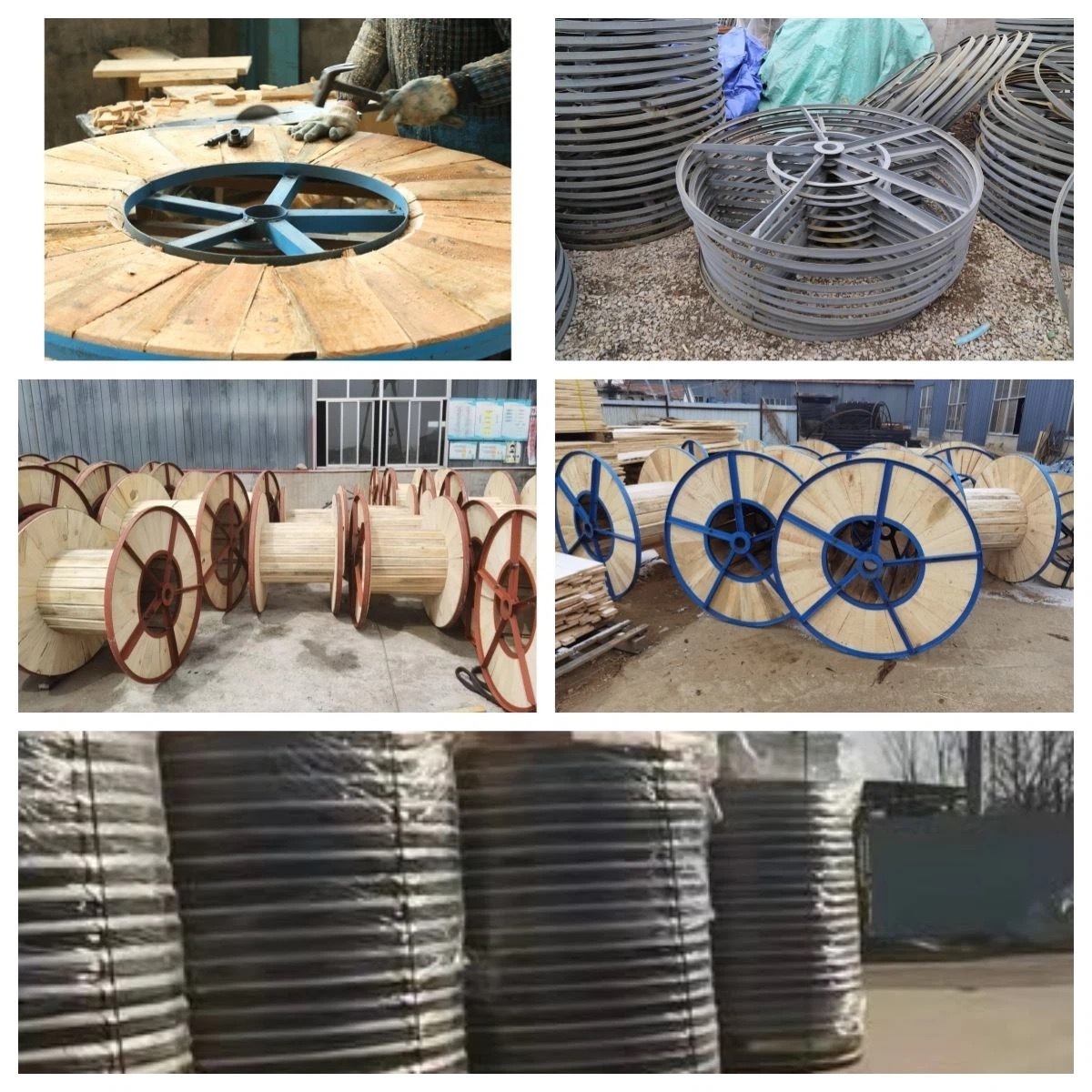

5. Packing and delivery
(1) Wooden box packing
(2) PE film packing
(3) Wooden frame packaging
Packaging & Dispatch
