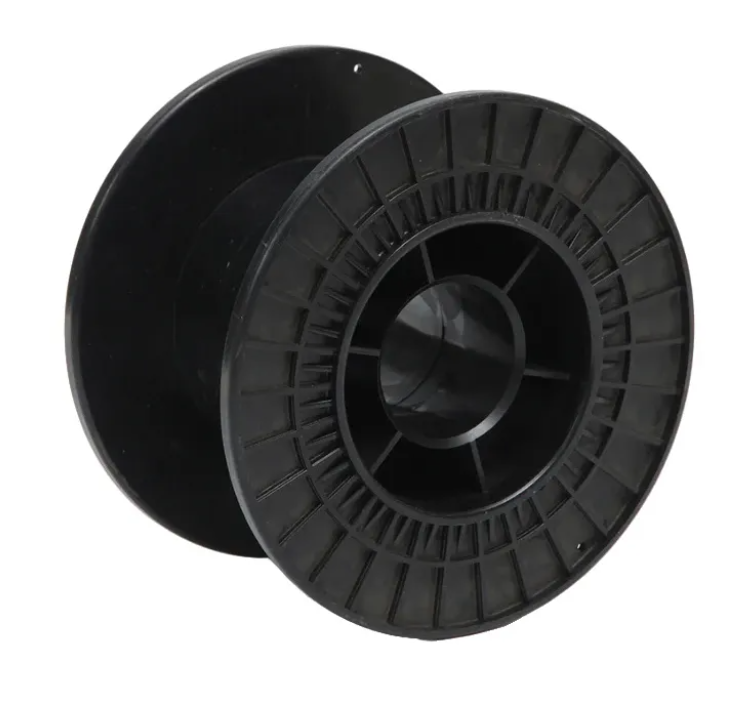

ABS PC Bobbin Winder Parts
ABS PC Bobbin Winder Parts

ABS PC Bobbin Winder Parts

Category:

Plastic Wire Spools

E-Mail:

boss@sdtsgm.com

Inquiry
WhatsApp
E-mail

Keyword:

Plastic Wire Spools

FSC
IAF
IAS

Product Description

Product Features
1.High quality and reasonable price
2.Short delivery time
3.This plastic wire spool applied with the engineering plastics such as ABS, PS injection molding, mainly be used in all kinds of copper wire, alloy wire, steel wire, such as packaging, can be repeated use.



Significant product benefits include:
1)A wide variety of standard spool sizes.
2Custom spools for applications including:Coaxial cable, rope, speaker wire, THHN wire, CATV wire, hose, chain, tubing, packing material and fabrics.
3)Industry-leading spool technology and ongoing innovation
4)High impact recyclable engineering materials
5)Structural integrity and impact resistance
6)Zero corrosion




Technical specification and drawings


Model

lateral plate diameter(mm)

barrel diamter D2(mm)

internal width L2(mm)

external width(mm)

middle hole diameter (mm)

thickness of flange(mm)

carrying hole diameter(mm)

center distance(mm)

PC-150

150

88

89

110

16

10

9.5

27

PC-200

200

115

152

186

32

17

6.5

27

PN300

300

160

160,220

190,250

30,40

15

7

76-97

PN315

315

130

160,220

190,250

25,30,40

15

9

76-98

PN350

350

160

160,220

200,260

25,30

20

9

76-99

PN400A

400

200

120,250,265,280

155,300,300,312

40,56,70

16

10

60-75

PN400B

400

200

250,265,280

290,305,320

40,56,70

20

10

75-90

PN500A

500

250

250,280,315

300,320,375

40,56,80

20

12.5

70-98

PN500B

500

250

250,280,315

300,330,365

40,56,80

25

12.5

70-98

PN500C

500

250,320

250,315

305,370

40,56,80

27.5

12.5

70-98

PN560

560

315

305

360

127

27.5

8

70-98

PN630A

630

250

315,415

375,475

56,80

27.5

12.5

70-98

PN630B

630

315

315,415

375,475

56,80

27.5

12.5

70-98

PN800A

800

315

415

500

80,127

35

20

115-158

PN800B

800

400

500

600

80,127

35

20

115-158

PN1000

1000

500

630

750

127

40

20

114-166
